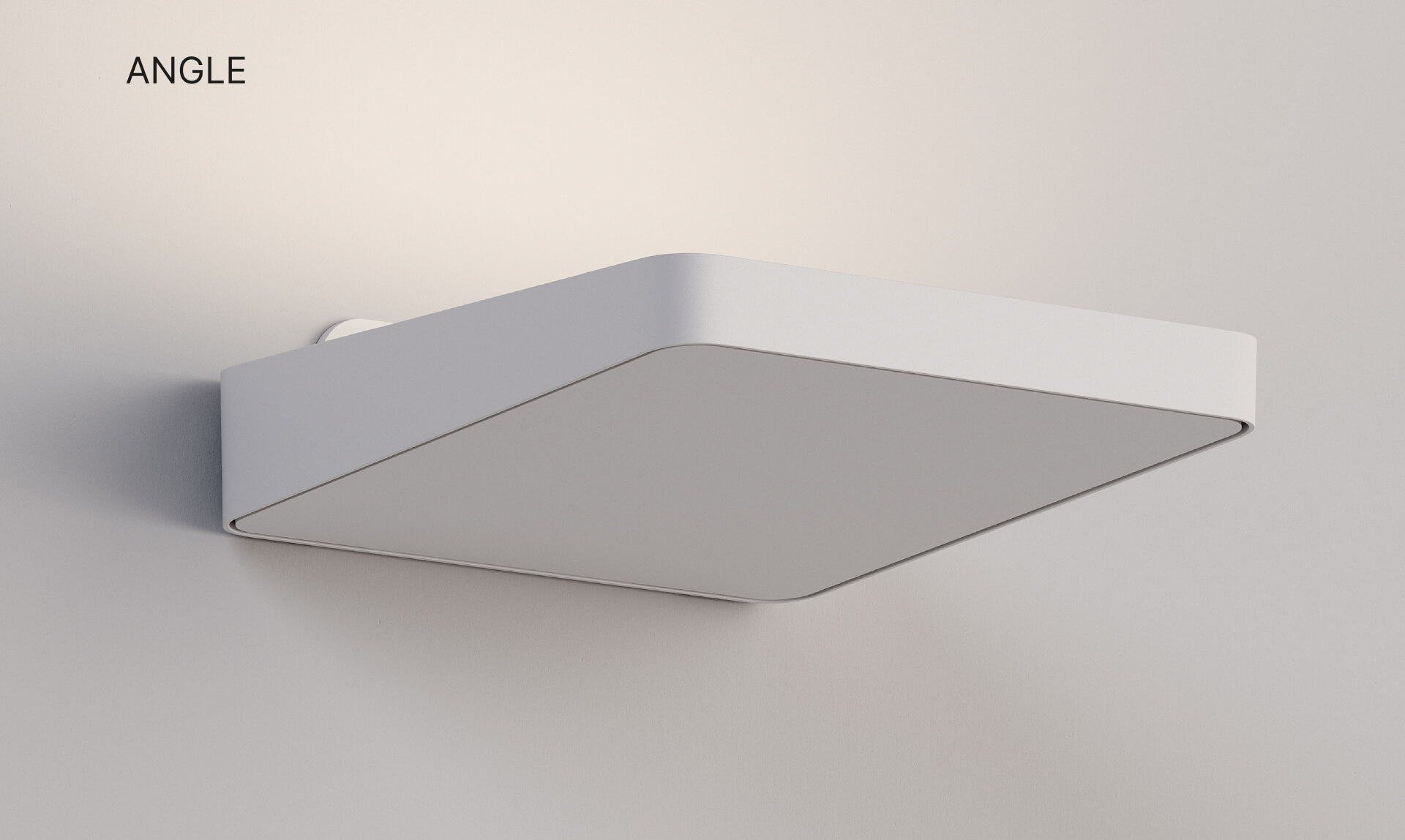

OUTPERFORMING DESIGN
Angle is about tailored performance in a sleek design. Advanced optics deliver controlled, efficient lighting that belies its slim profile.
The high-performance luminaire features an indirect asymmetric distribution and delivers up to 49,886 lumens depending on options selected.

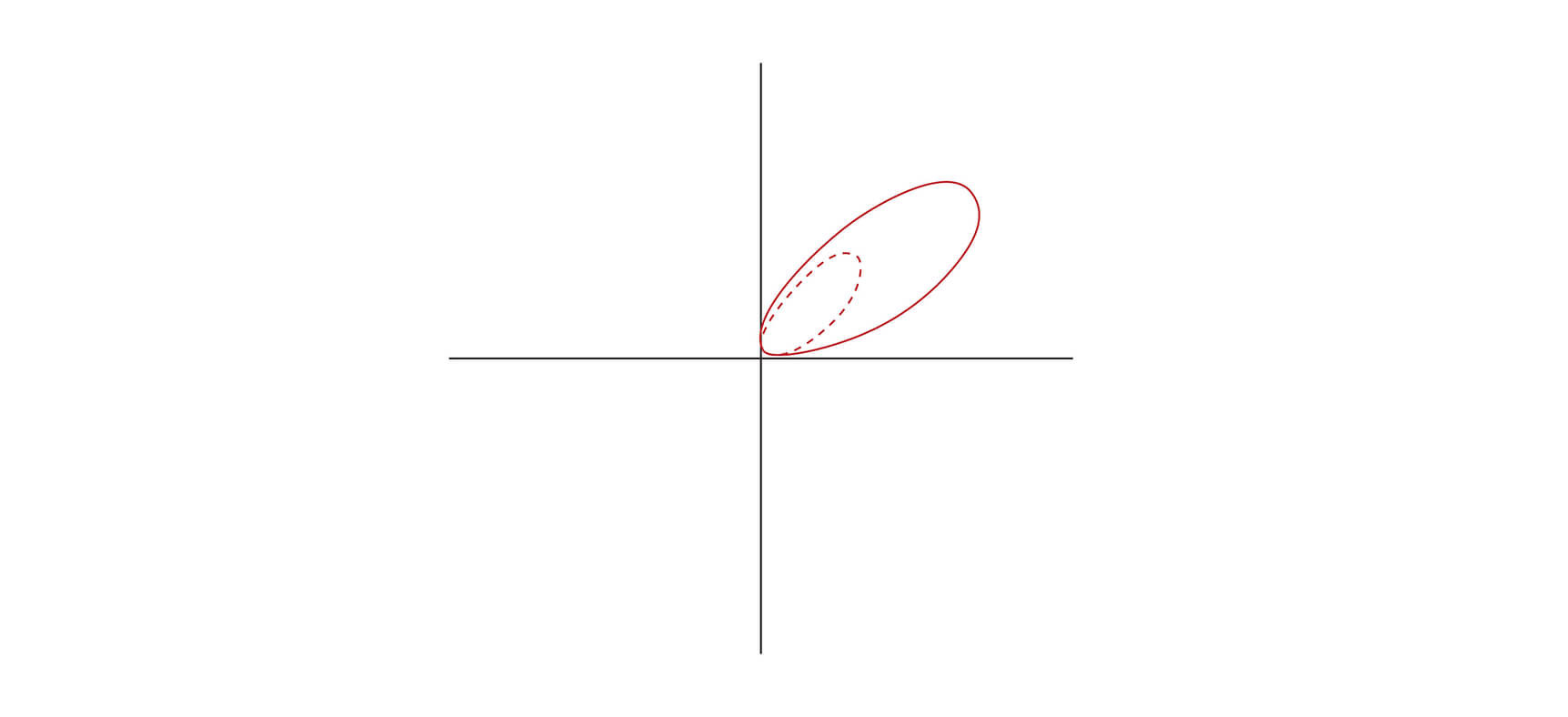

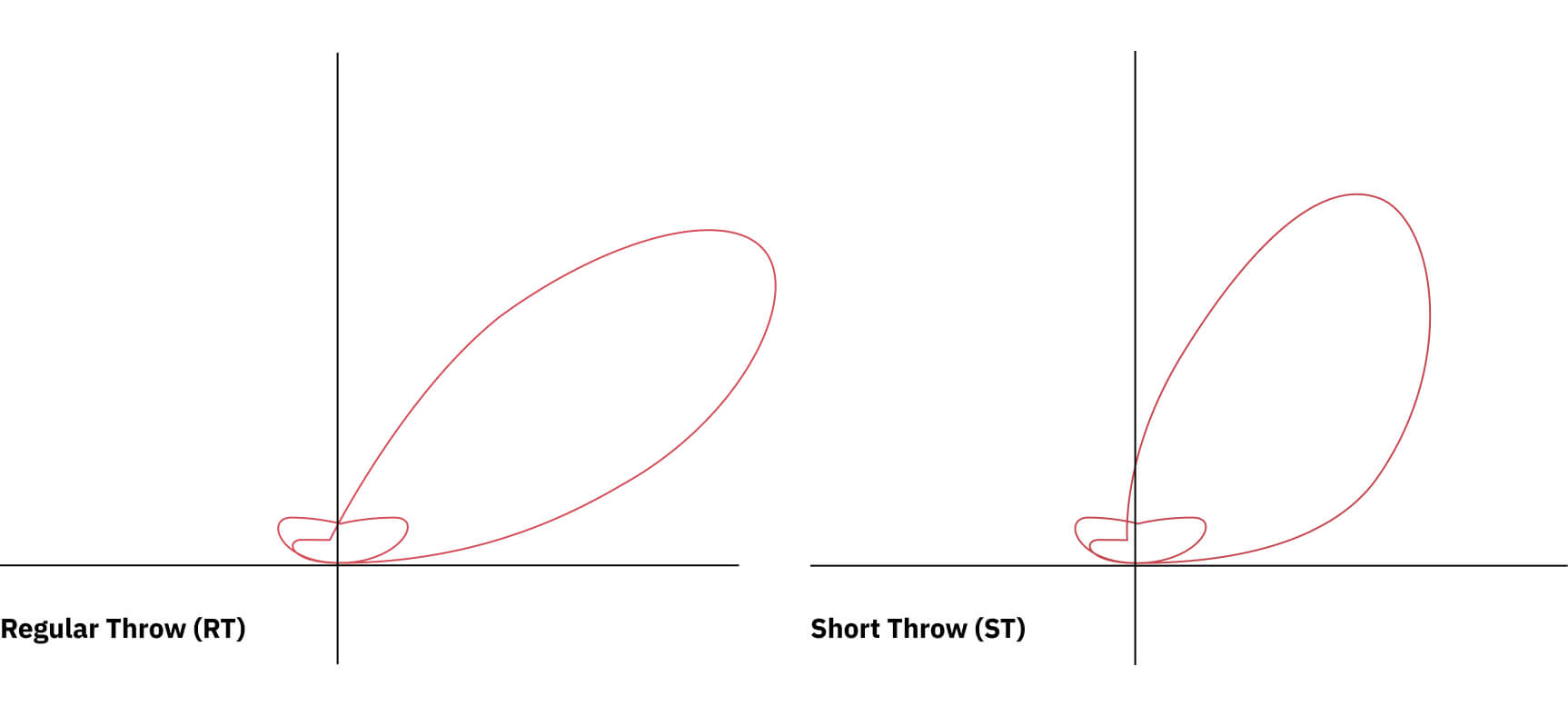

Asymmetric throw
Lumens: 12,151 lm/ft
Input watts: 101.8 W/ft
Efficacy: 119.4 lm/W
Ceiling illumination
Even and far-reaching light projection across the ceiling
REACH NEW (CEILING) HIGHS

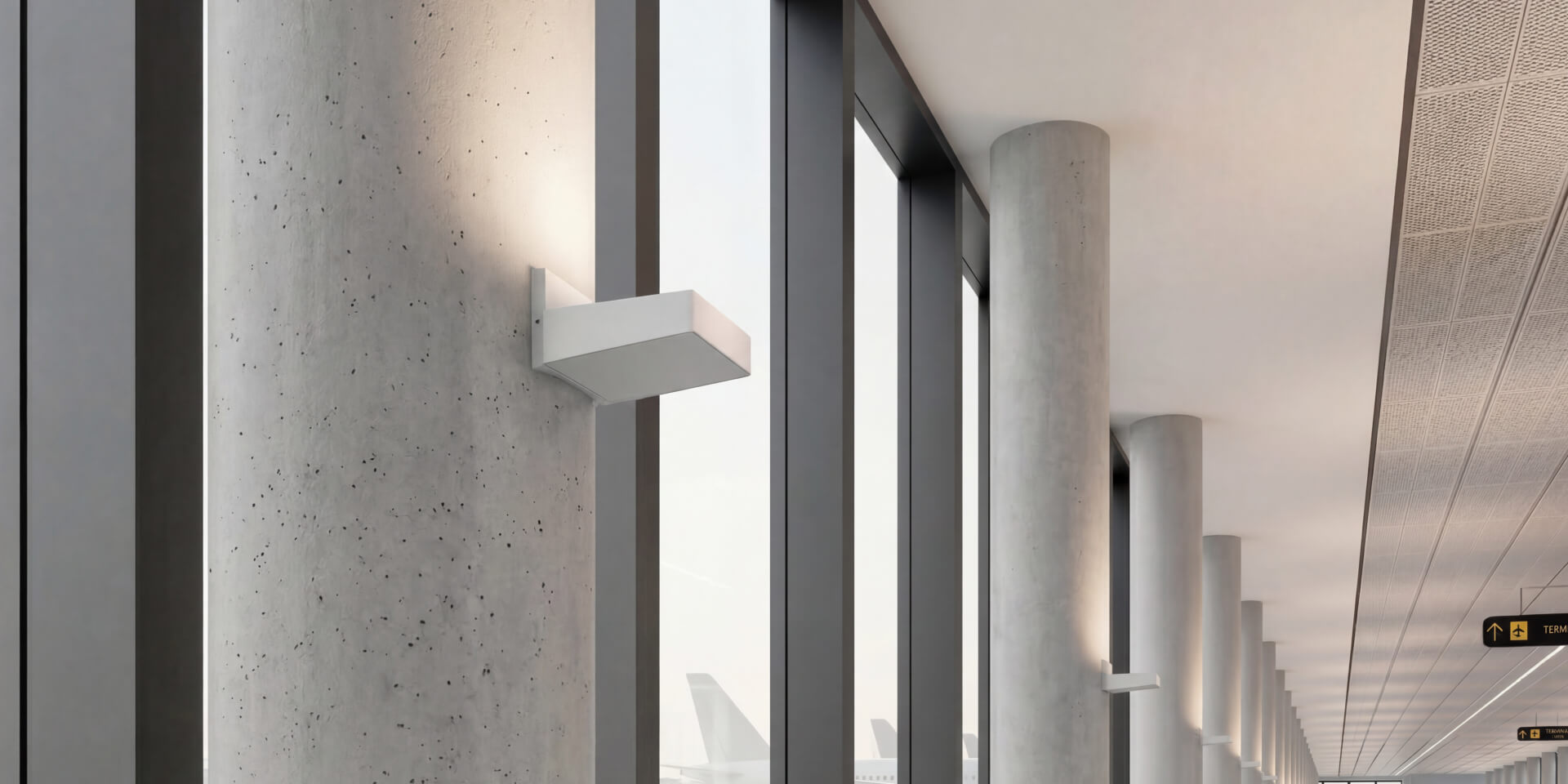

With a high output, Angle is designed for large spaces such as airports, transit stations and sports centers.
SUBTLE INTEGRATION
Angle’s sleek design enables it to elevate a space – subtly. It brings a high output with uniform asymmetric distribution to a space while integrating seamlessly into the architecture.
Dive In
Angle luminaires suitable for wet locations when specified for natatorium applications. Each luminaire features a natatorium-rated finish on the fixture’s body to ensure longevity in these harsh environments.
When specified for a natatorium, a clear cover is added on top of the luminaire to protect the optics, and gaskets seal the light engine from unwanted moisture.
Angle can deliver 100 footcandles on pool surface which aligns with NCAA (National Collegiate Athletic Association) recommended best practices to ensure quality of light in the space.

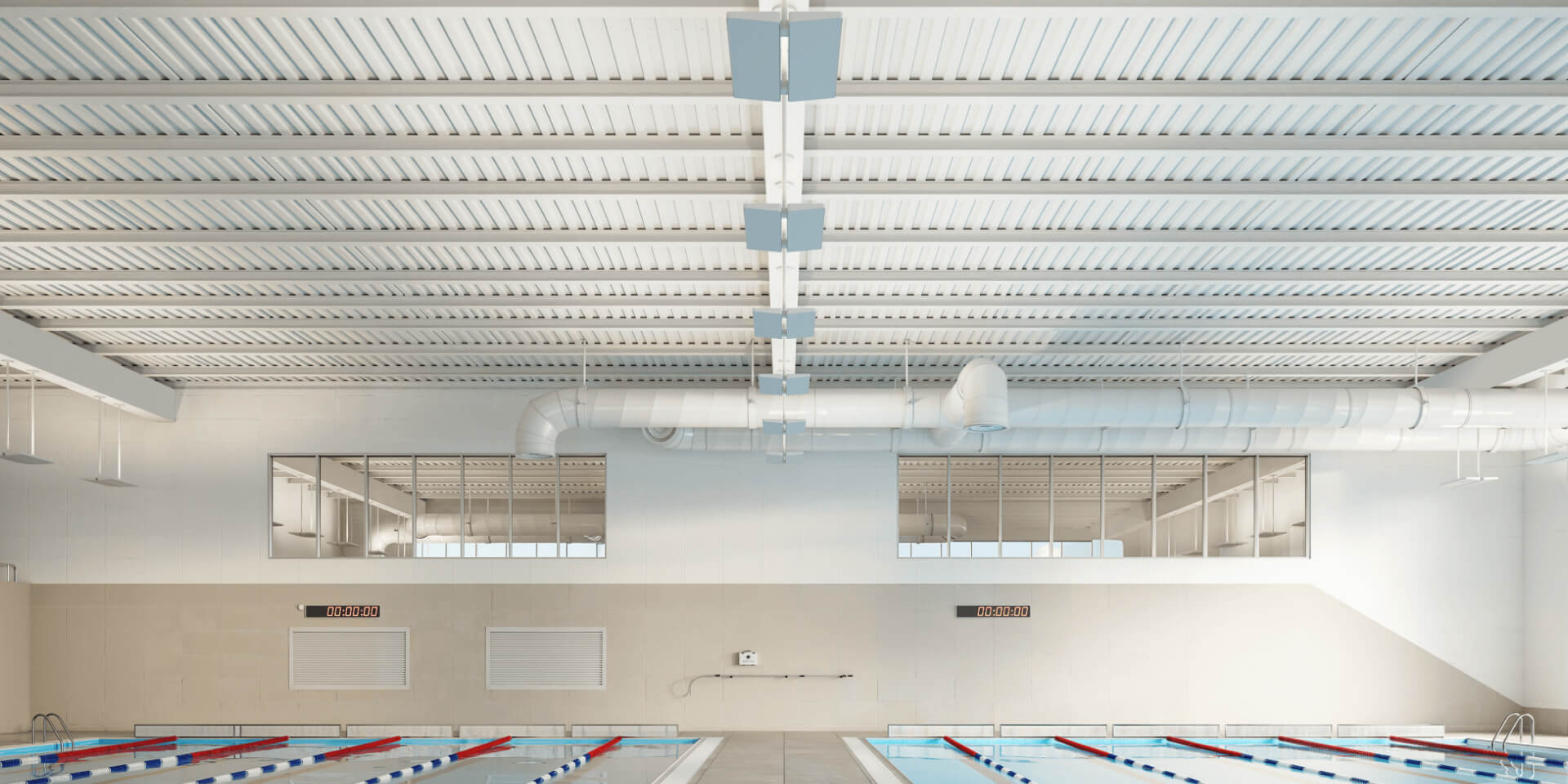

Natatorium space example
| Room dimensions | 100′ W x 150′ L x 27.5′ H |
| Fixture lumens | 40,408 lm |
| LLF | 0.95 |
| Mounting height | 20′ A.F.F. |
| Target pool avg. illuminance | 100 fc (NCAA) |
| Actual pool avg. illuminance | 100.5 fc |
| Fixture spacing | 9′ |
| Fixtures per row | 10 |
| Distance between row | 60′ |
| Dual pendant 4′ angle fixture quantity | 30 |
| Stem length | 5′ |
| Fixture reference code | ANG24LVH35CRIUD2P60BK |
An array of possibilities

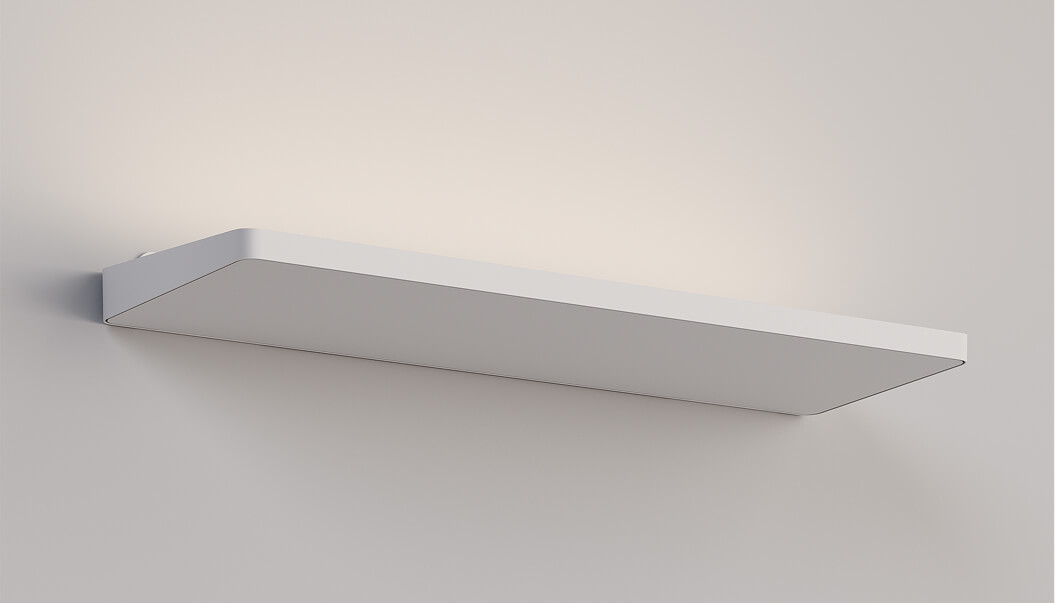

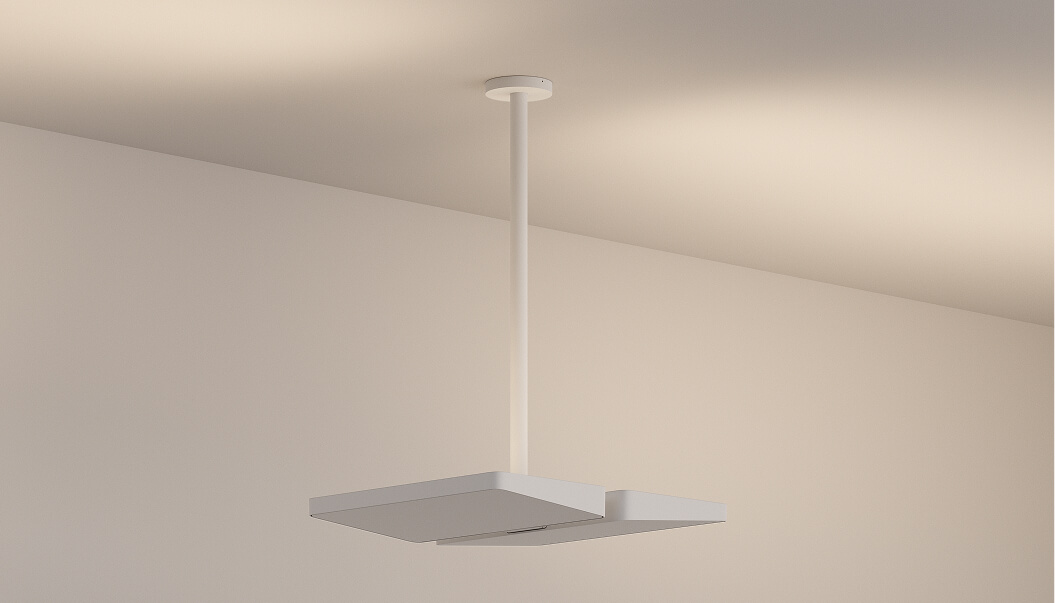

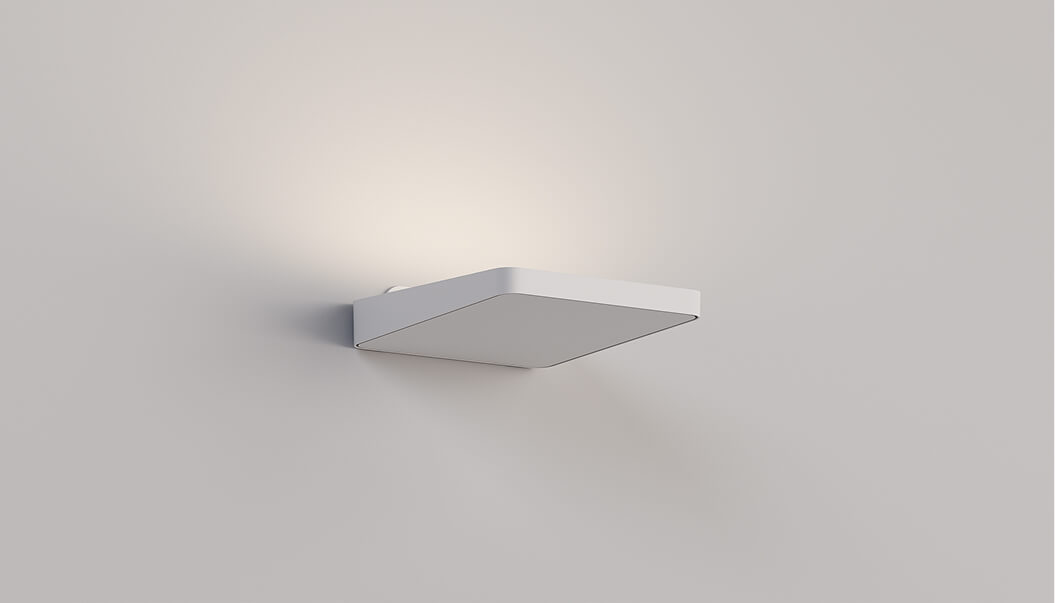

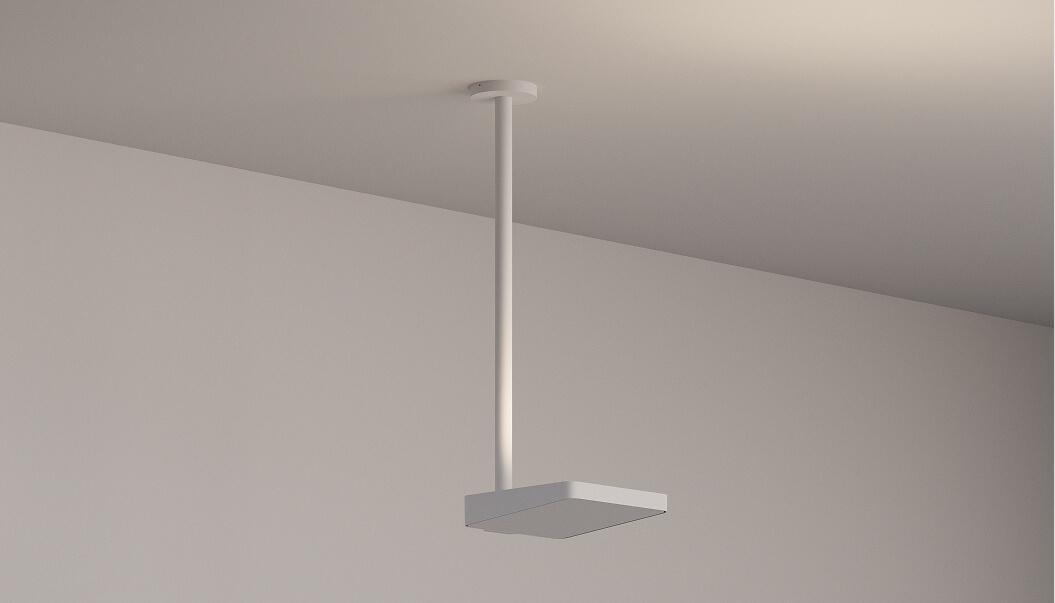

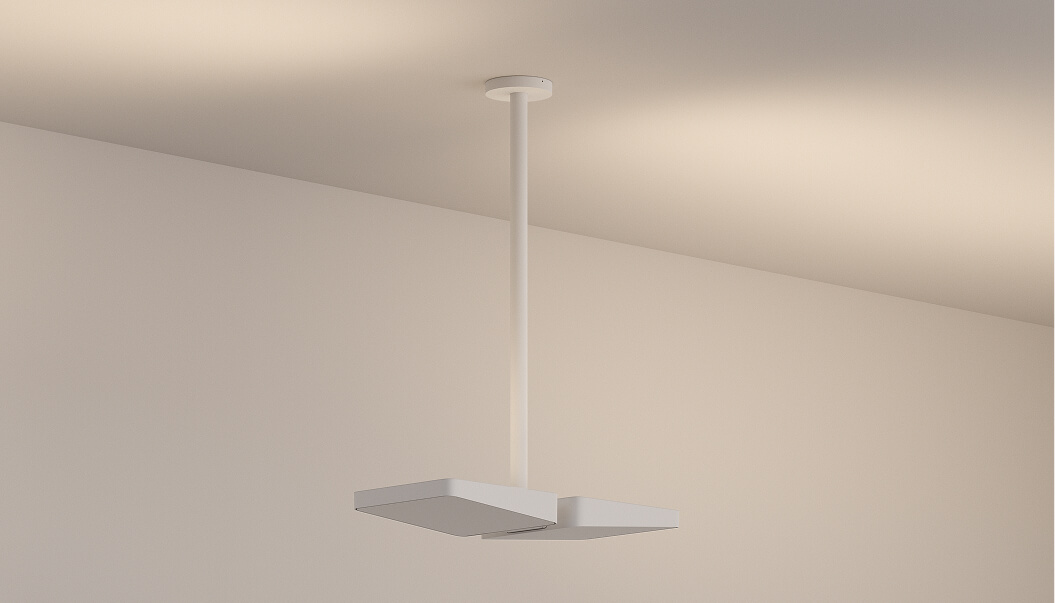

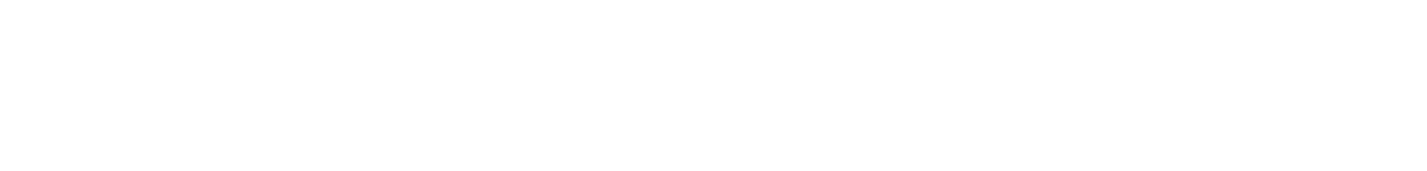

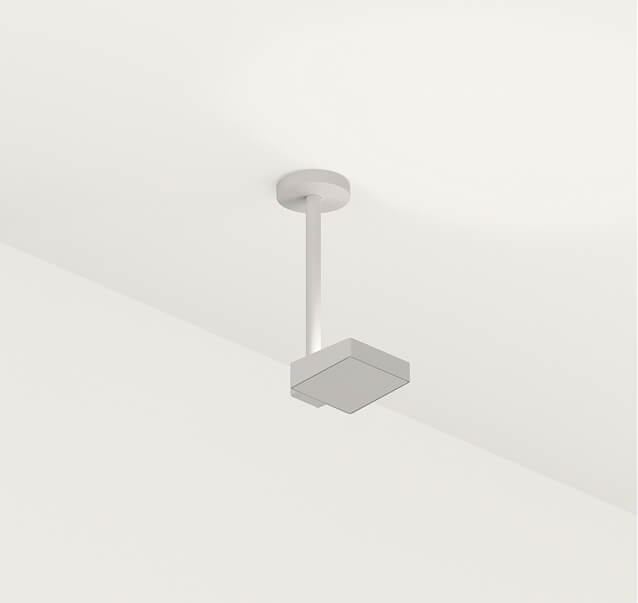

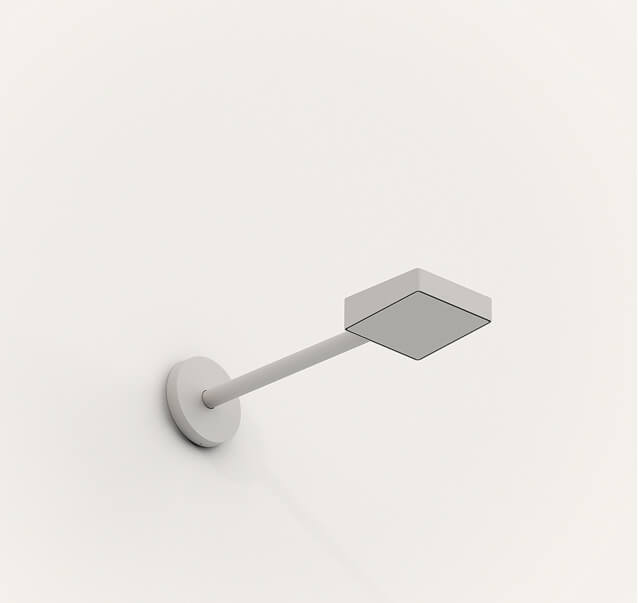

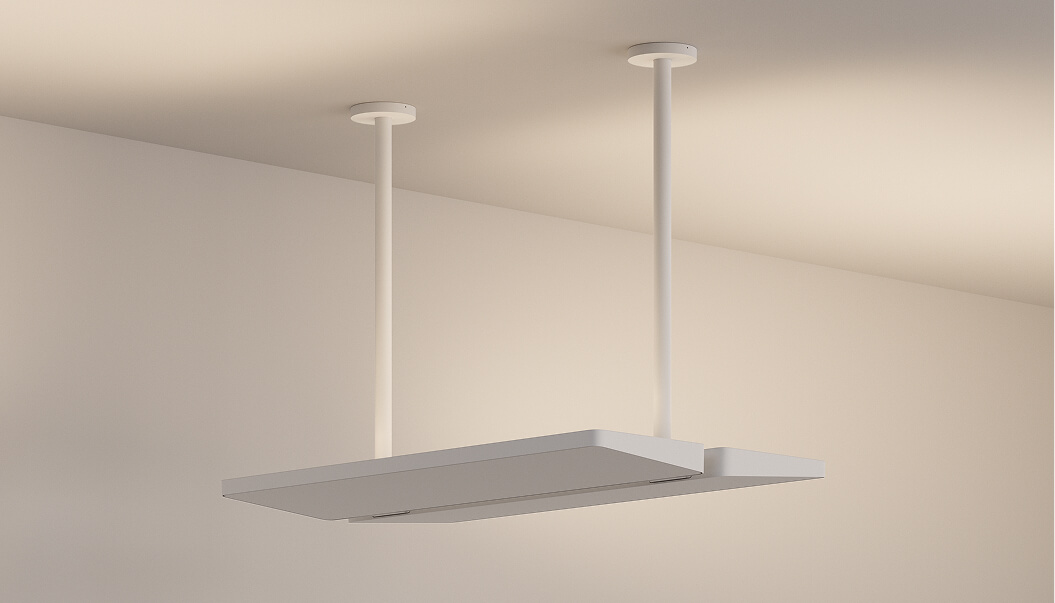

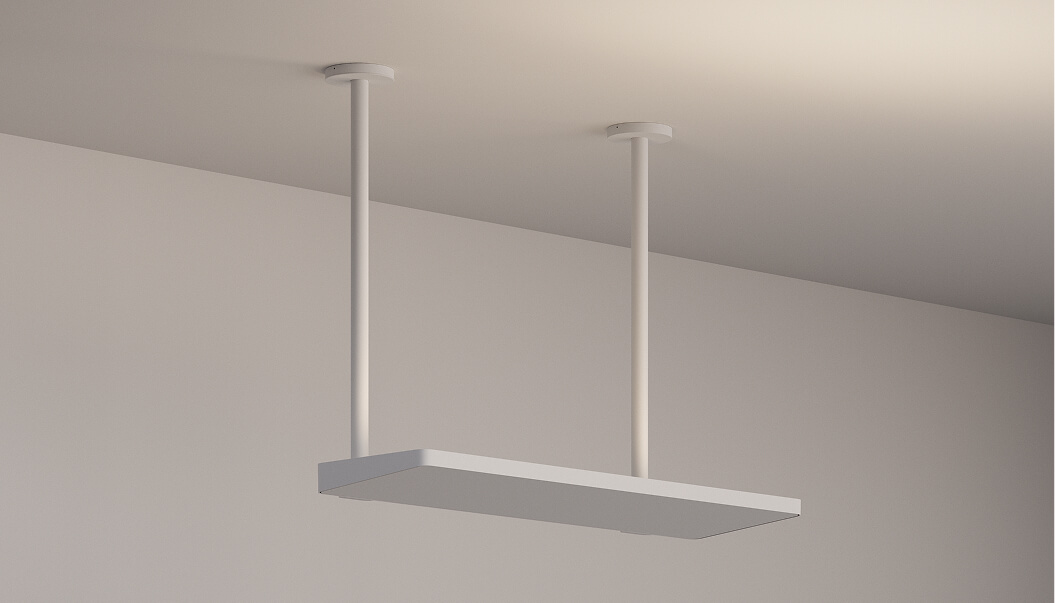

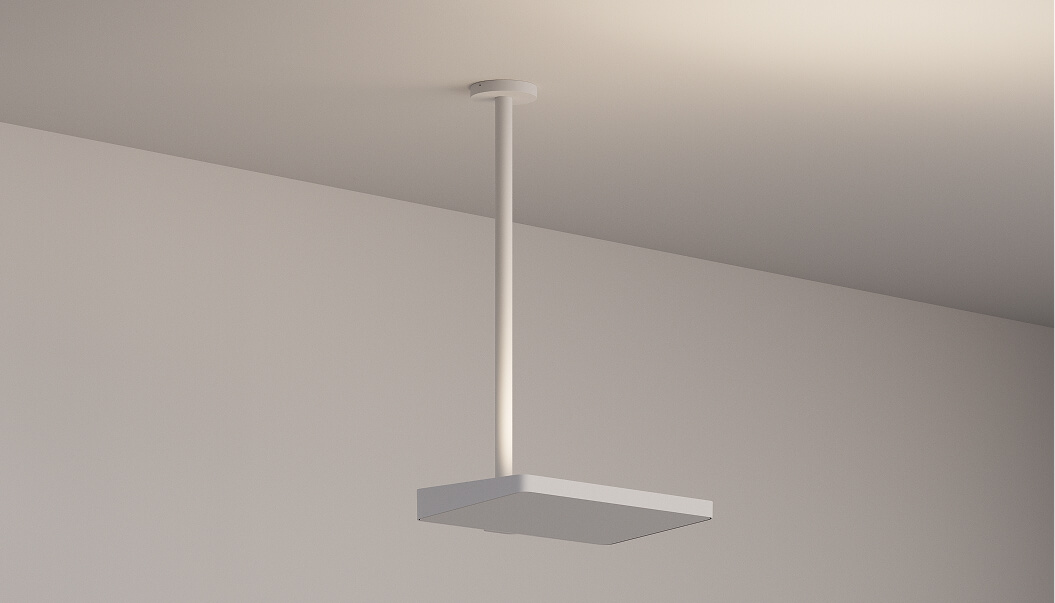

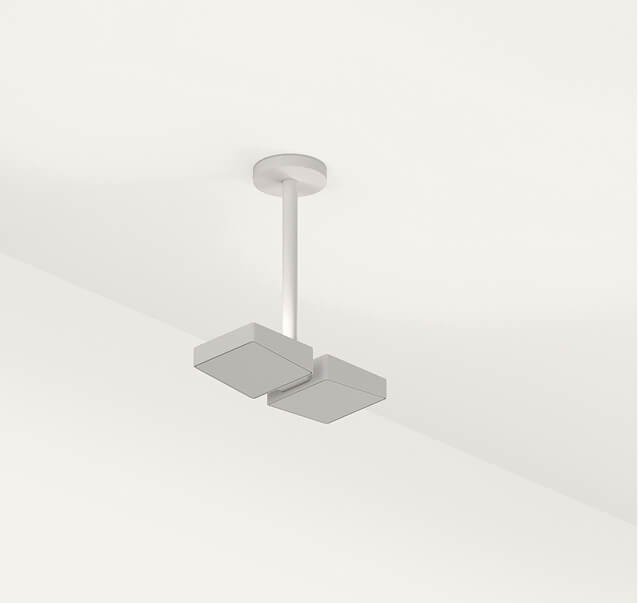

Multiple mounting options – surface, pendant, and dual pendant – allow a uniform design aesthetic throughout a project. Each mounting option can be specified in 1’, 2’ or 4’ lengths to meet specific lighting requirements. Standard finishes include white, titanium, and black. Work with Customer Care for custom RAL finish options.
DOWNLOADS
DOWNLOADS
Want to learn more about angle?
